[Pro] Coffee Machine with C integration

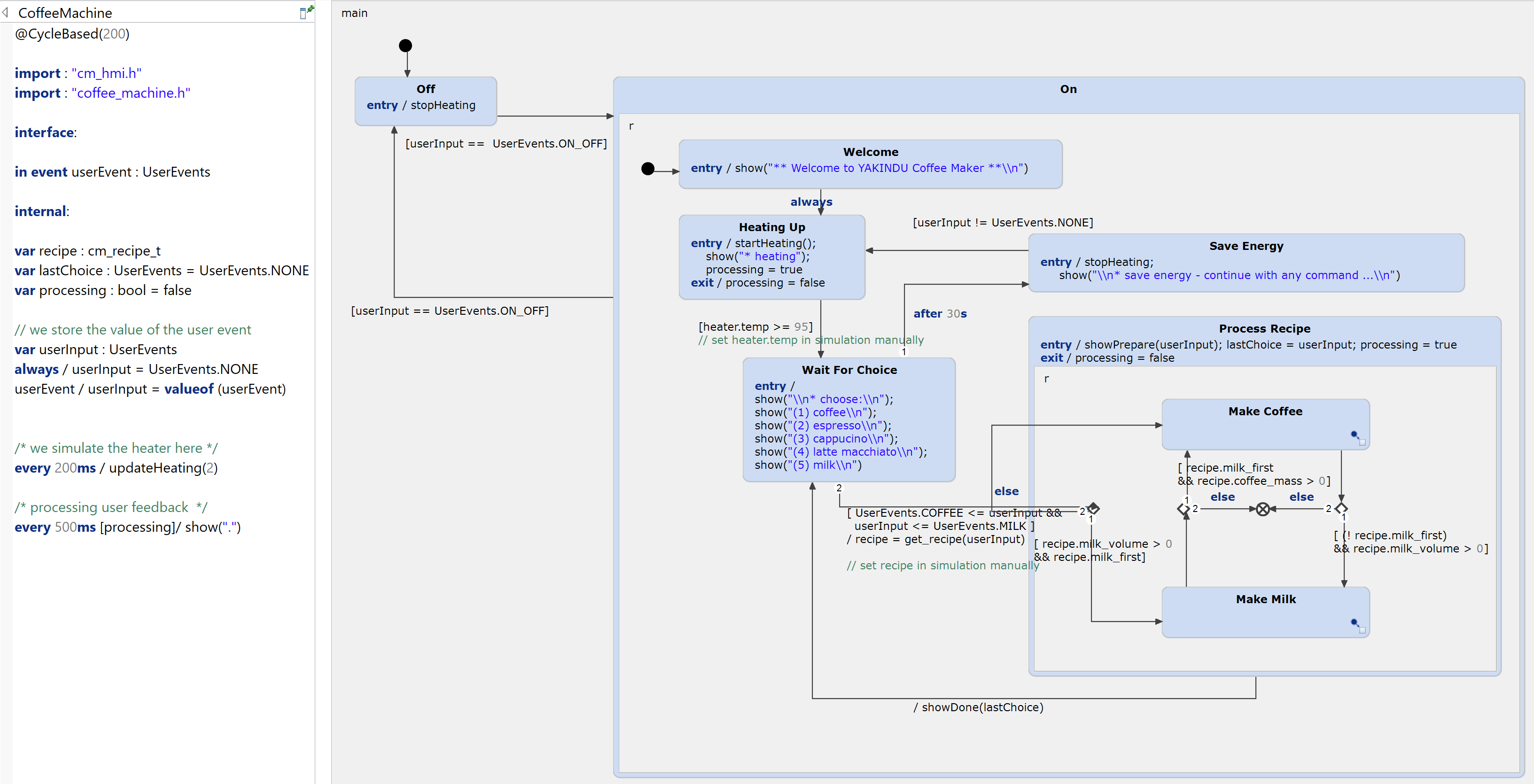

This is a comprehensive example for the deep integration of CREATE statecharts with manually written C code. The example is implemented as a simple command line tool. It makes use of POSIX threads. So you need a compiler tool chain and a 'pthread' library to build an run the example. The underlying statechart for the coffee machine looks as follows:

The digital watch statechart in all its details

The statechart consists of two major states "ON" and "OFF". The "ON" state is a composite state with several substates and substate machines for the different modes.

Manually written source code​

The source code artifacts are all located in the 'src' folder. File names that include 'coffee' or 'cm_' include application specific implementations and those with 'sc_' prefix are generic parts that belong to the state machine infrastructure.

Set up your system​

As mentioned above you need a compiler tool chain and the 'pthread' libraries. If you have a Linux or Mac OS Xsystem you likely have everything installed. If you run Windows than we propose to install cygwin tools (https://www.cygwin.com).

Set up the project​

This project is preconfigured for Windows with cygwin. If you use another system:

  • right-click on project 'coffee_machine' in the 'Project Explorer'
  • choose 'Properties'
  • a dialog appears - choose 'C/C++ Build'
  • select 'Tool Chain Editor'
  • choose the appropriate tool chain for 'current tool chain'
  • click 'OK'

... and your project should be ready to build.

Build​

  • Right-click on project 'coffee_machine' in the 'Project Explorer'
  • choose 'Build Project'

Run the example​

In the 'Debug' or 'Release' folder you will find an executable 'coffee_machine_pro.exe' (even on Linux and Mac OS X). Right-click on this and choose:

  • 'Run As > Local C/C++ Application'.

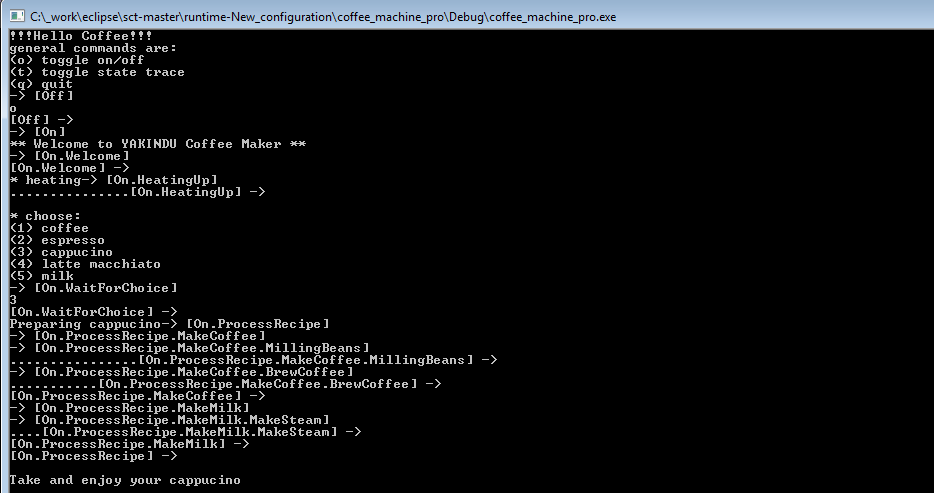

The embedded Eclipse console shows up and you can follow the instructions. Enter 'o' to start the coffee machine... Output of the coffee machine on the console

Simulate​

Additionally you can simulate the statechart by right-click and choose:

  • 'Run As > Statechart Simulation'

You'll find more information on using the simulation in the help.

Change the model​

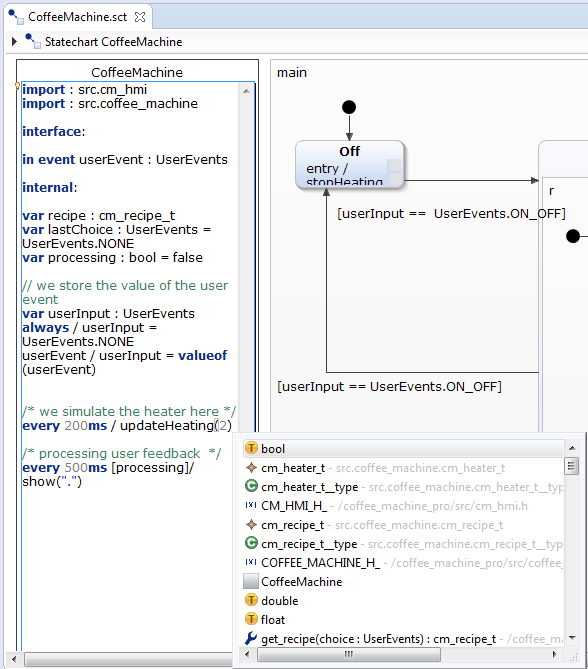

You may want to change or extend the model. Within the embedded expression editor you can press 'Ctrl-Space' to get proposals, which also include the C elements from the imported C header files. By pressing CTRL (CMD) +Space you get coding proposals.

Generate state machine code​

If you have changed the model you can generate state machine code by right-click on 'CoffeeMachine.sgen' and choose 'Generate Code Artefacts'. This will generate:

  • CoffeeMachine.h
  • CoffeeMachine_required.h
  • CoffeeMachine.c

Get this example​

The complete project — statechart models, sources and build files — lives in the itemis CREATE examples repository. Inside itemis CREATE for Eclipse you can import it directly with the example wizard.
