Parent-first vs. Child-first Execution

This example demonstrates the two different execution schemes of composite states: child-first and parent-first execution. For more information, please also refer to chapter Parent-first and child-first execution.

Composite state execution schemes​

The parent-first and child-first execution schemes define in which order a composite state and its substates are processed:

  • In the parent-first execution scheme, the composite state (parent) is processed first, before its substates are processed.
  • In the child-first execution scheme, the active substate (child) is processed first, before its parent composite state is processed.

Example​

We will use the following example model to explain the two different execution schemes:

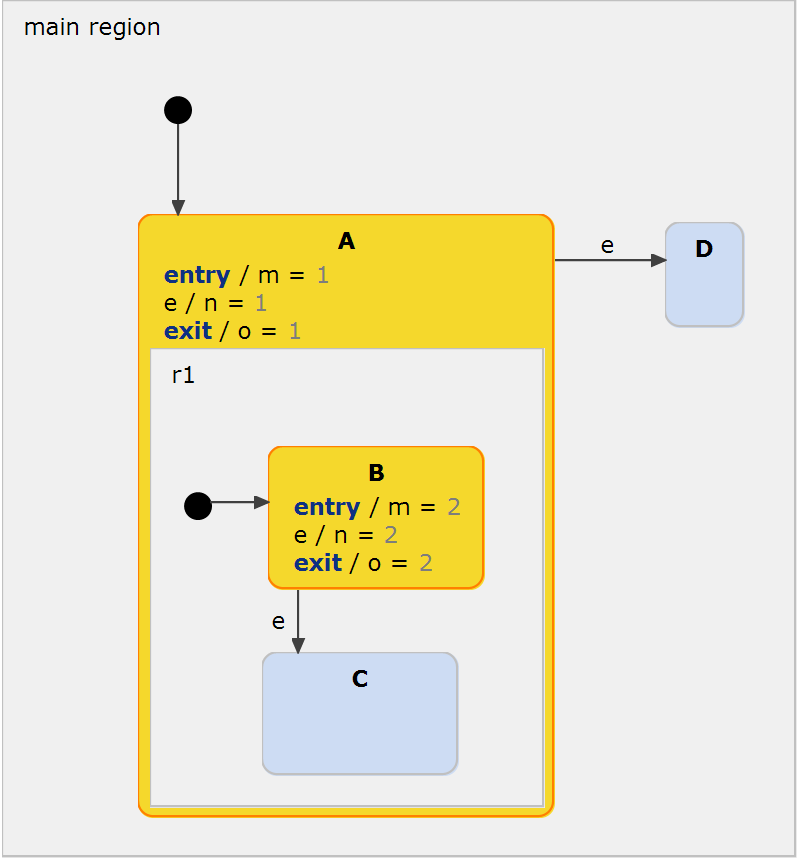

Example model to explain parent-first vs. child-first execution

The question that we want to answer is: What happens if event e is raised, i.e. which state gets activated, C or D; and what are the values of the statechart variables m, n and o afterwards?

Let's first answer which state gets active. When the event e is raised, the specified execution scheme defines which of the currently active states', A's or B's, outgoing transitions are evaluated first. In the child-first execution scheme, state B, the active child of the composite state, is processed first. Hence, the transition to state C is evaluated and taken. In contrast to that, in the parent-first execution scheme, the outer state A is processed first and state D gets activated:

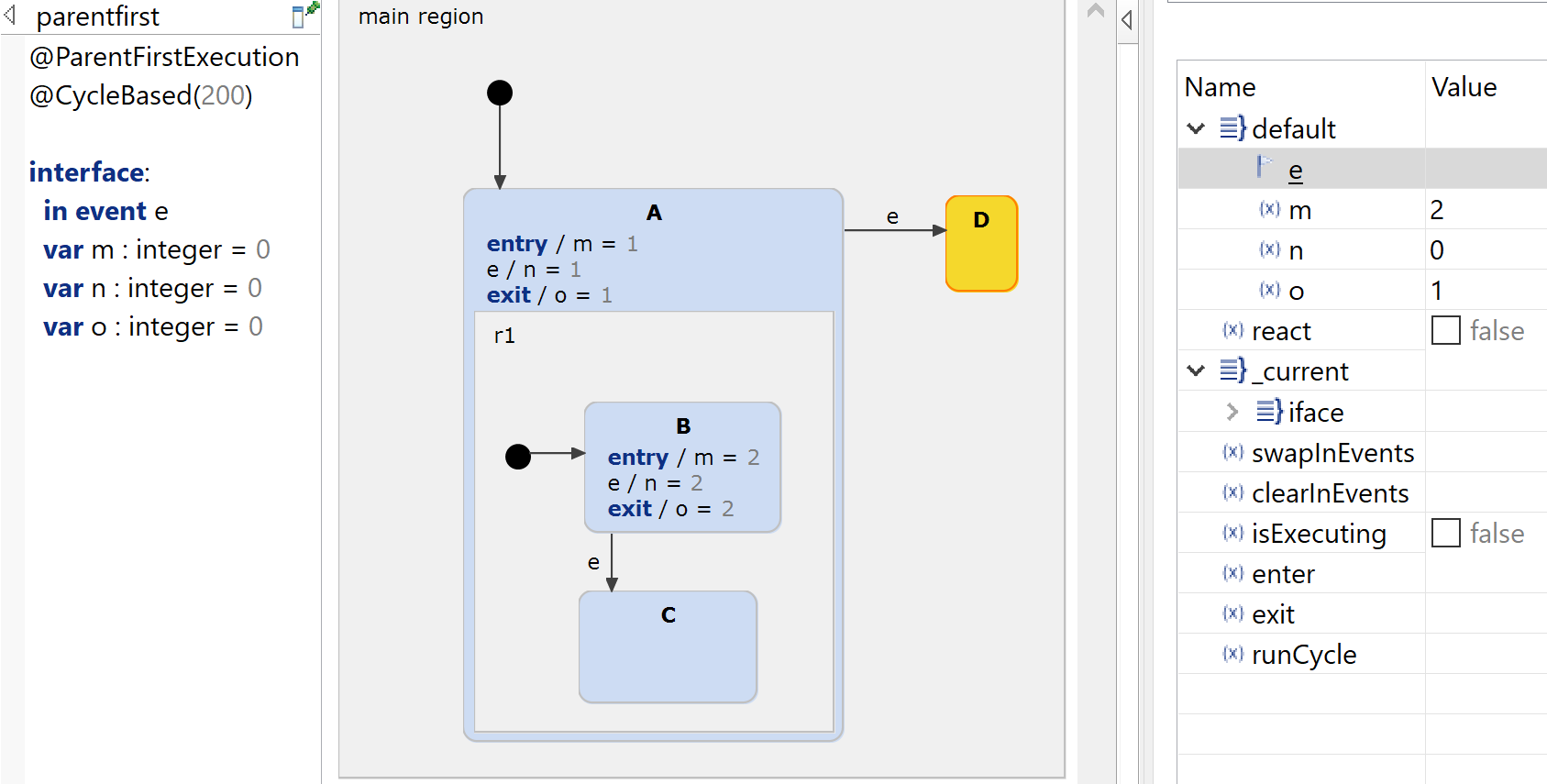

Example model after parent-first execution

Now let's take a look at the variable values. When starting the simulation (or when entering the statechart), the outer state A is activated first, independent of the used execution scheme. Afterwards, the entry action of state B sets m to 2. After event e is raised, the inner state B is exited first, before A is exited which sets the value of o to 1.

Notice the difference when child-first execution is used:

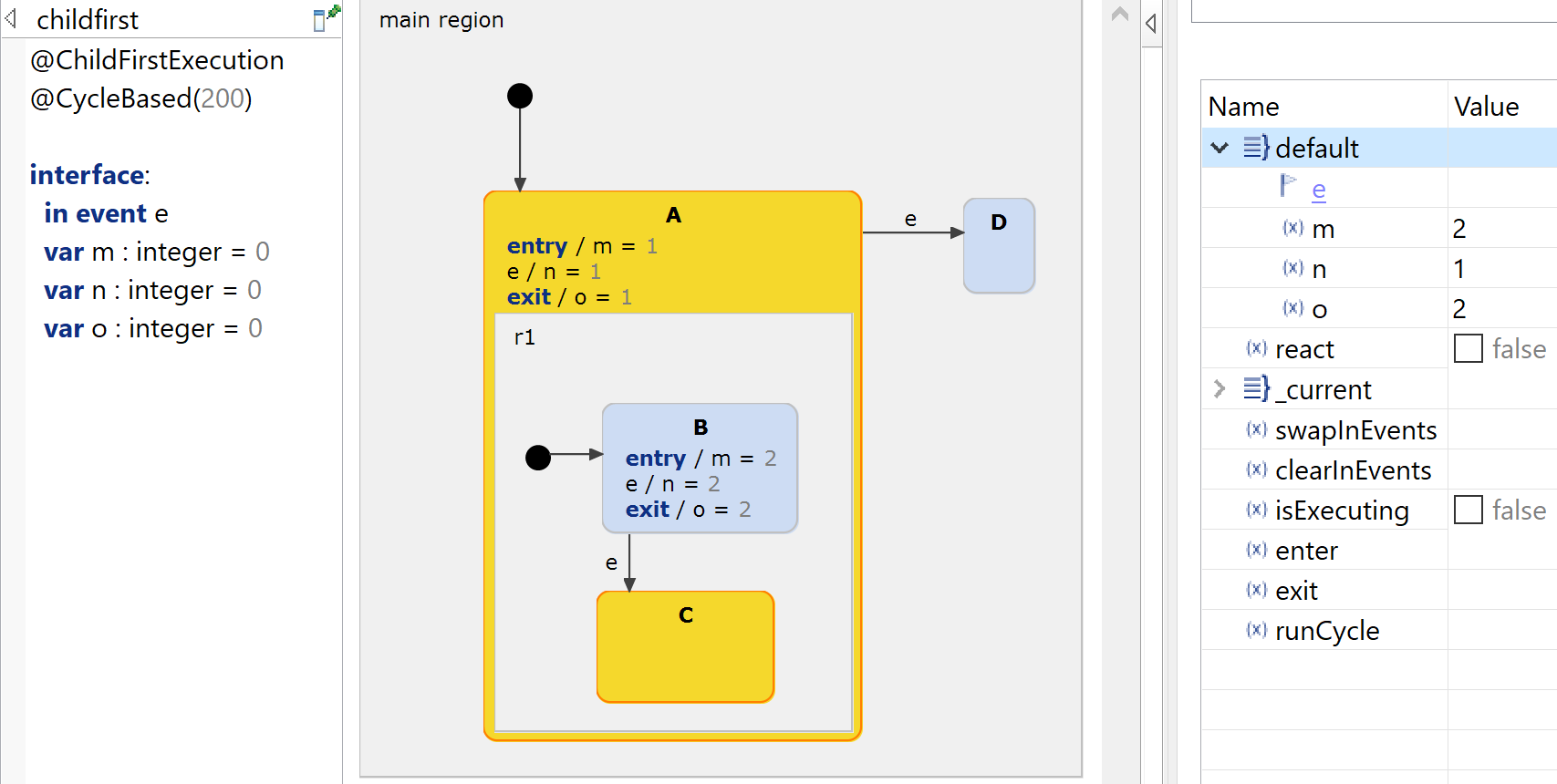

Example model after child-first execution

When event e is raised, state B is exited, setting variable o to 2. Furthermore, the outer state A stays active in this run-to-completion step and hence its local reaction is executed, setting n to 1.

Get this example​

The complete project — statechart models, sources and build files — lives in the itemis CREATE examples repository. Inside itemis CREATE for Eclipse you can import it directly with the example wizard.
