Java Code Generation for SCTUnit with JUnit and Mockito

This example demonstrates how to generate JUnit tests using Mockito from SCTUnit tests and how to set everything up. The test program can be executed and integrated in your build process easily.

Example application​

The example application and SCTUnit test is based on the previous example Testing State Machines with SCTUnit.

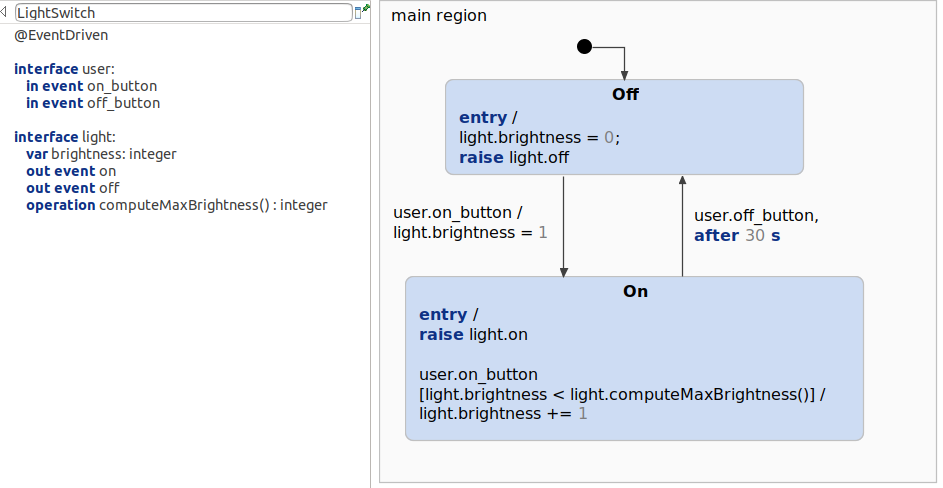

Light switch model

Setup Projects Properties​

For running JUnit tests with Mockito the library Mockito is required. The project has already been configured. However, if you want to create your own projects executing tests, you need to add the mockito libraries manually and configure the build path.

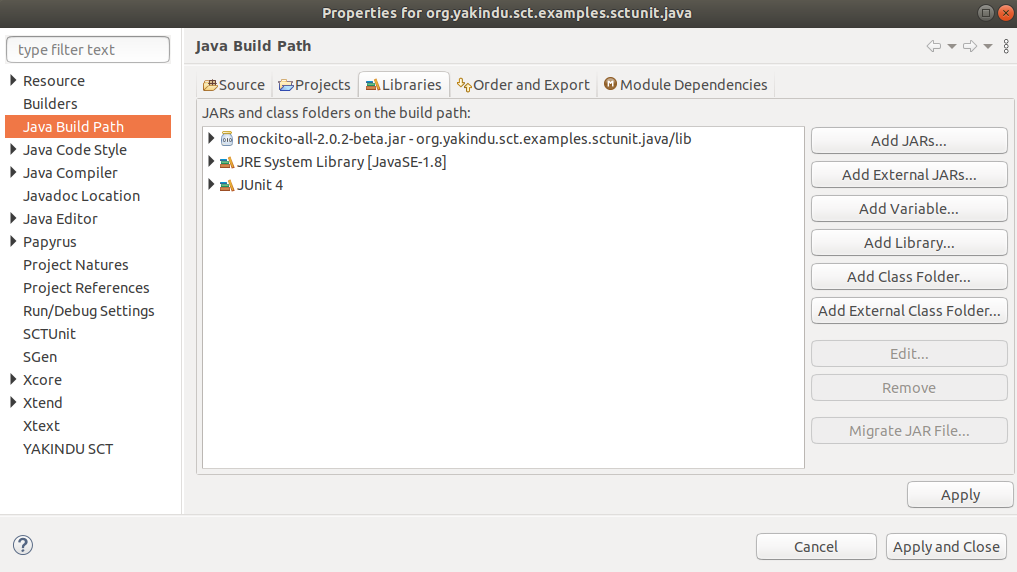

Java Build Path

Test Code Generation​

Code generation for Java code has already shown step by step in the previous example Java Code Generation. This example contains a code generator java.sgen file for generating the state machine code, which is required. Additionally to that, the tests folder contains a code generator file for the SCTUnit file: java_test.sgen. The generator ID for this example is sctunit::java. You can right click the generator file and generate the code artifacts. This will generate the test class, which can be executed as JUnit test.

/* Defines which code generator to use */
GeneratorModel for create::sctunit::java {
	/* Refers to the sctunit test 'LightSwitchTest' */
	test LightSwitchTest {
		/* Specify the target location for the generated artifacts. */
		feature Outlet {
			targetProject = "itemis.create.examples.sctunit.java"
			targetFolder = "src-gen"
		}

		feature Naming {
			basePackage = "light.tests"
		}

		feature StatechartNaming {
			libraryTargetFolder = "src-gen"
			basePackage = "light"
		}
	}
}

Test execution​

After generating the code, the project can be executed as JUnit test.

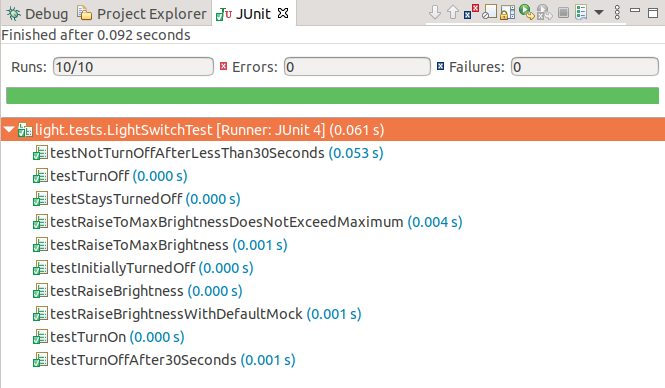

JUnit output

Get this example​

The complete project — statechart models, sources and build files — lives in the itemis CREATE examples repository. Inside itemis CREATE for Eclipse you can import it directly with the example wizard.
