Generating statechart code

You have developed and tested your statechart model, and now you need it as a C, C++, or Java implementation? itemis CREATE can create it for you.

As an example, we will take the light switch statechart and generate Java source code from it. Please proceed as follows:

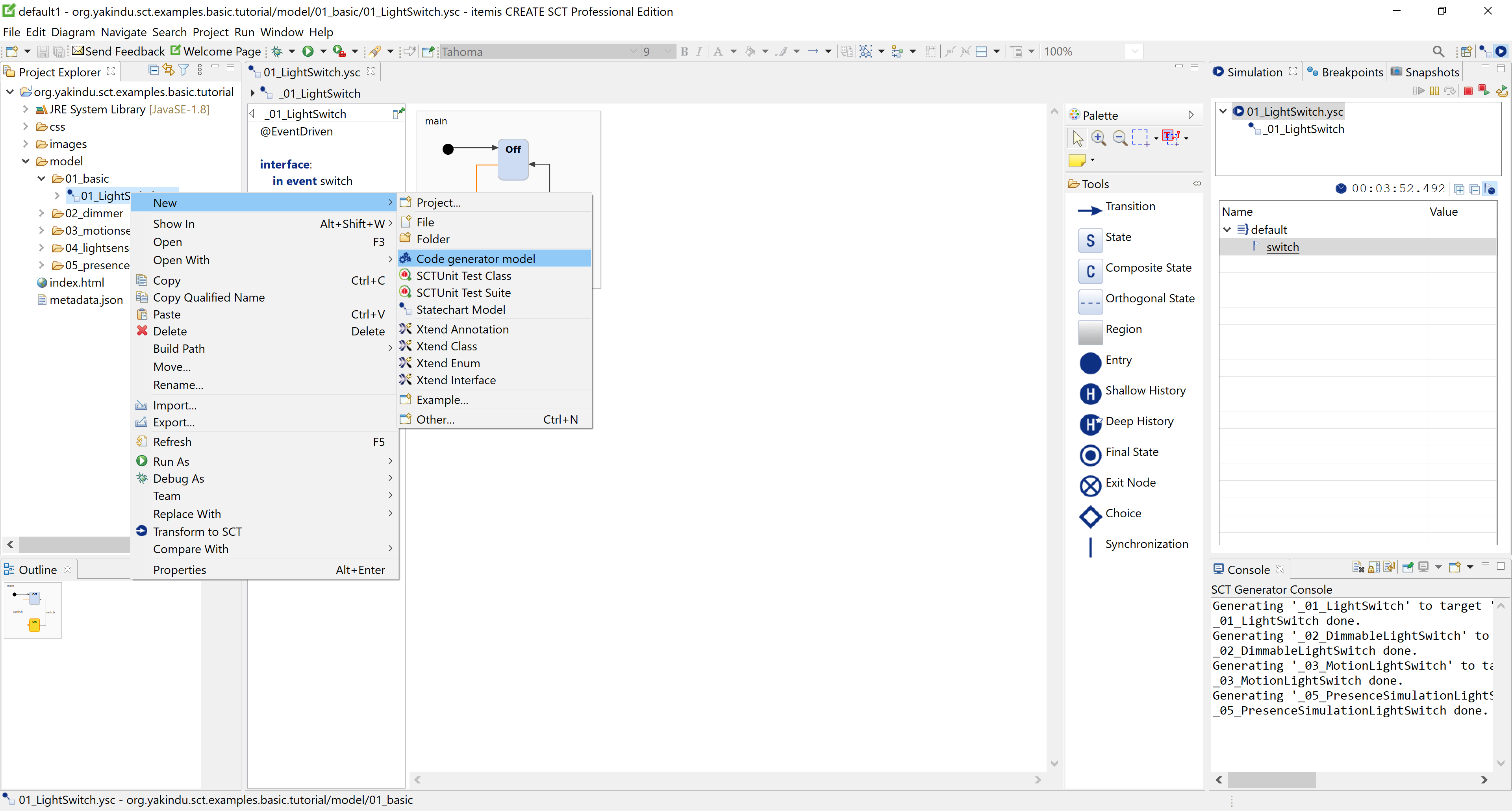

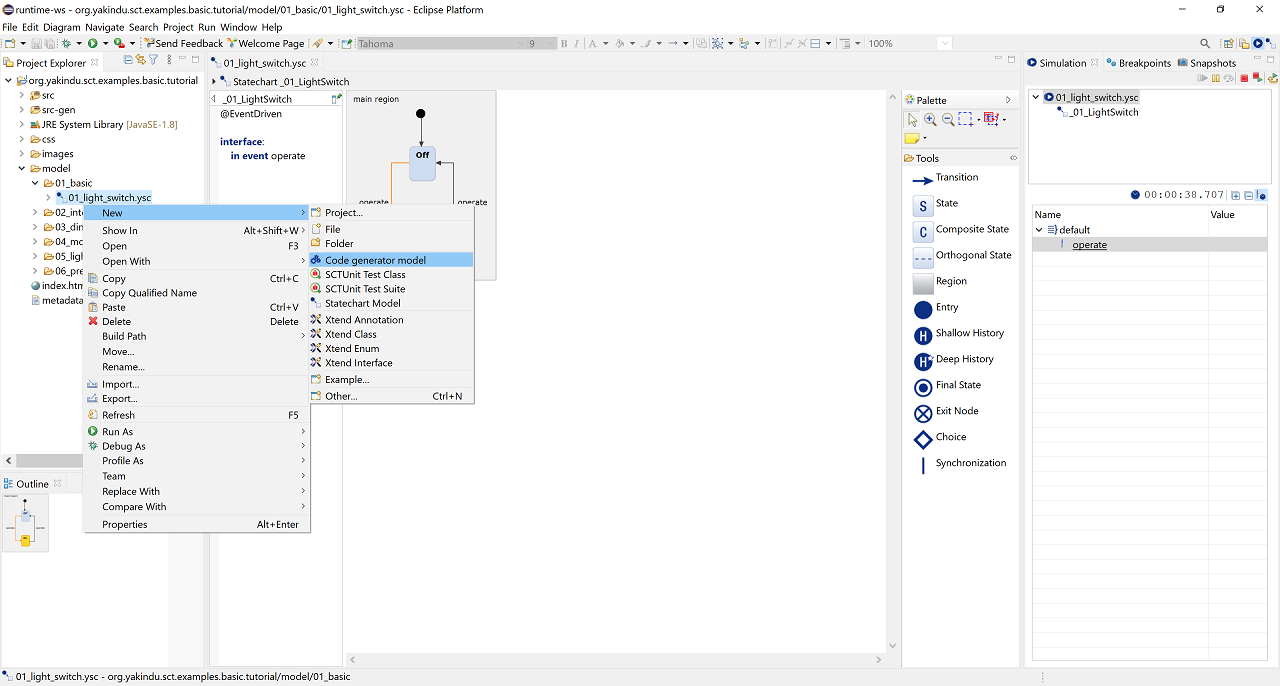

  1. In the project explorer, right-click on 01_lightSwitch.ysc and select New → Code generator model in the context menu.

    Creating a new code generator model

  2. In the dialog, replace Statechart.sgen by light_switch.sgen, then click Next >.
  3. In the next dialog, check the checkbox left from 01_lightSwitch.ysc under the 01_basic folder, then click Finish.

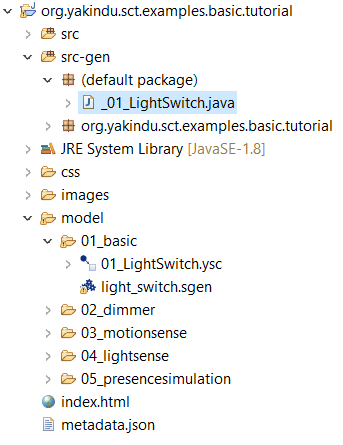

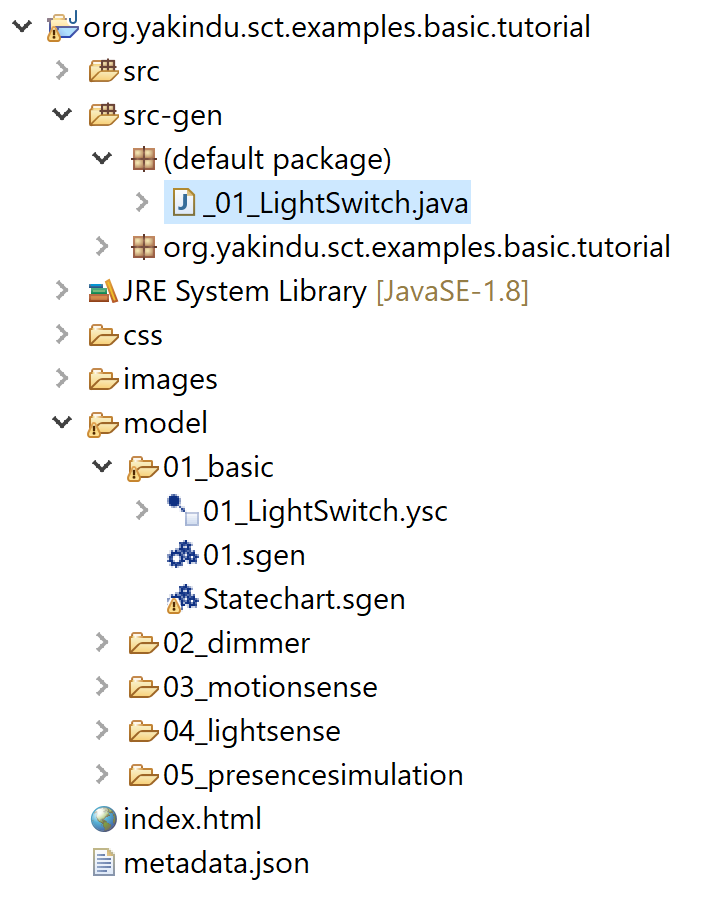

  4. Java classes implementing the statechart model are generated. You can find the generated source code in the folders src and src-gen.

    Generated Java source code

That’s it. If you want to know more, take the time and work through the Comprehensive Tutorial.
