YAKINDU Model Viewer Features

YAKINDU Model Viewer is a lightweight viewer for Simulink and Stateflow models. Discover YAKINDU Model Viewer's features to improve your workflow.

Download now see licenses

Work with Simulink models fast & efficiently

As a user of Simulink you often don’t need the high amount of features of the tool – you only need to view and explore models without any need to edit them.

YAKINDU Model Viewer is very lightweight. You can visualize even large models – that contain several thousand model elements – up to 8-times faster than Simulink does. Review and analyze your Simulink models even offline – without any expensive Matlab licenses.

Navigate through your Simulink models quickly & keep the overview

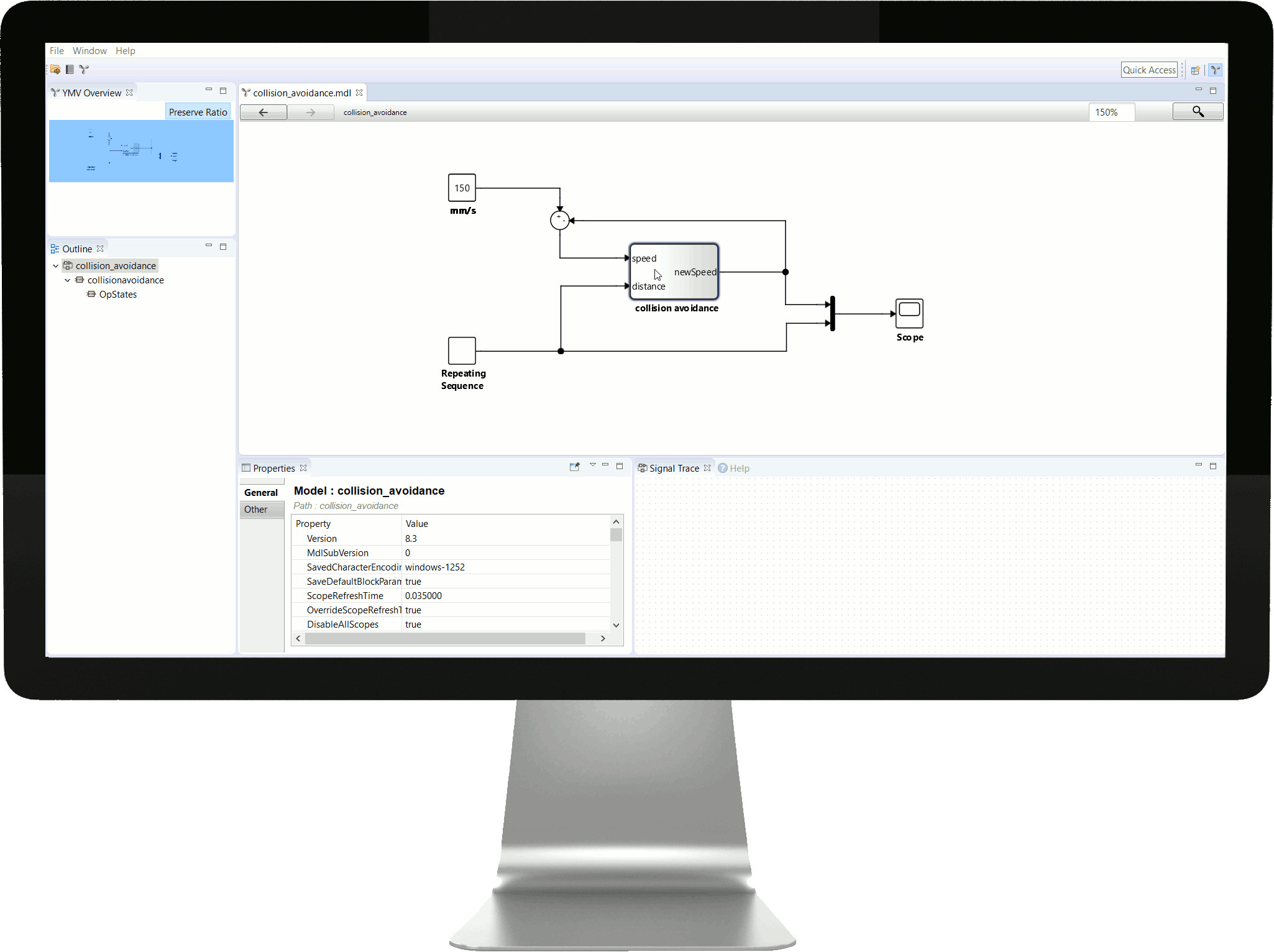

With YAKINDU Model Viewer you are able to navigate around and inspect diagrams with a fast drill down of the system hierarchy, e.g. with a simple double click. Breadcrumbs as well as the Outline view show the structure of the model and allow to navigate quickly to the location you are interested in.



MORE ABOUT NAVIGATION





Quickly find & jump to model elements and parameters

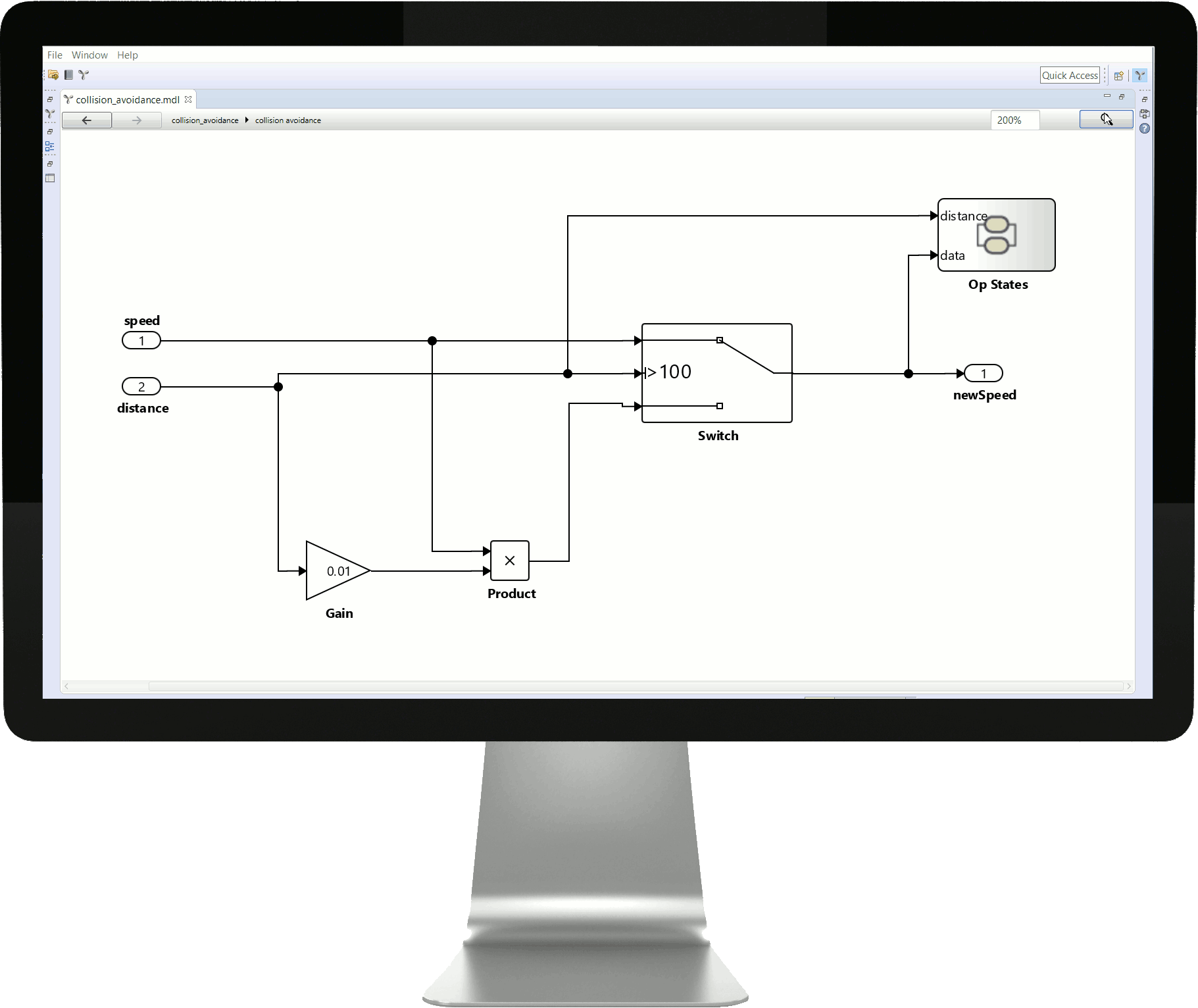

Finding specific blocks or parameters is essential when working with and analyzing large models. Thus, the search function of YAKINDU Model Viewer gives you the possibility to find and navigate to search results quickly.



MORE ABOUT SEARCH IN MODELS

Analyze signal flows thanks to advanced signal tracing

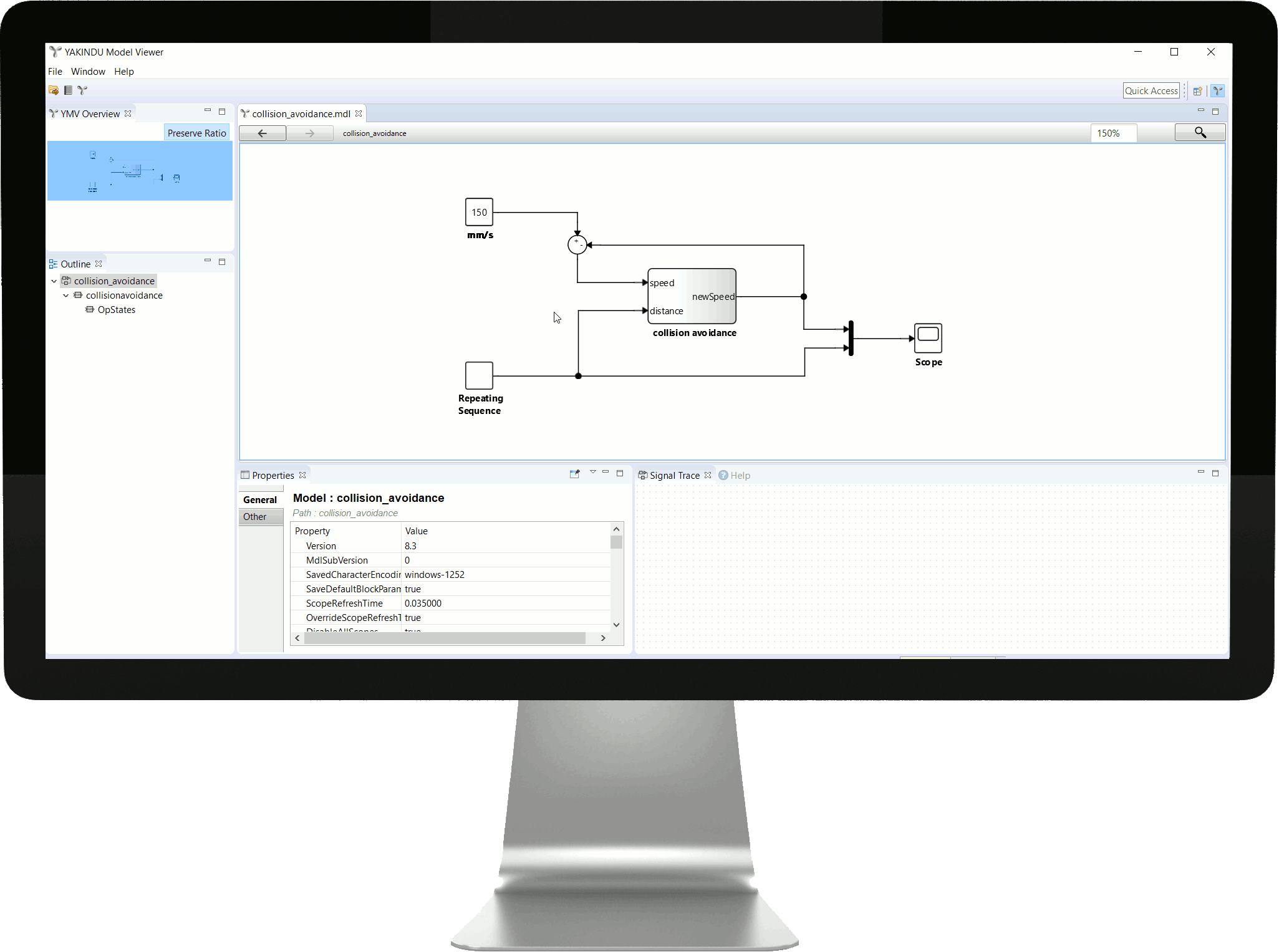

Understanding how signals are processed from inputs to outputs is especially useful when analyzing your Simulink model. The advanced signal tracing functionality of YAKINDU Model viewer provides everything you need. See the flow of signals at a glance in a dedicated view.



MORE ABOUT SIGNAL TRACING





Integrate documentation in PDF or Word with Simulink models

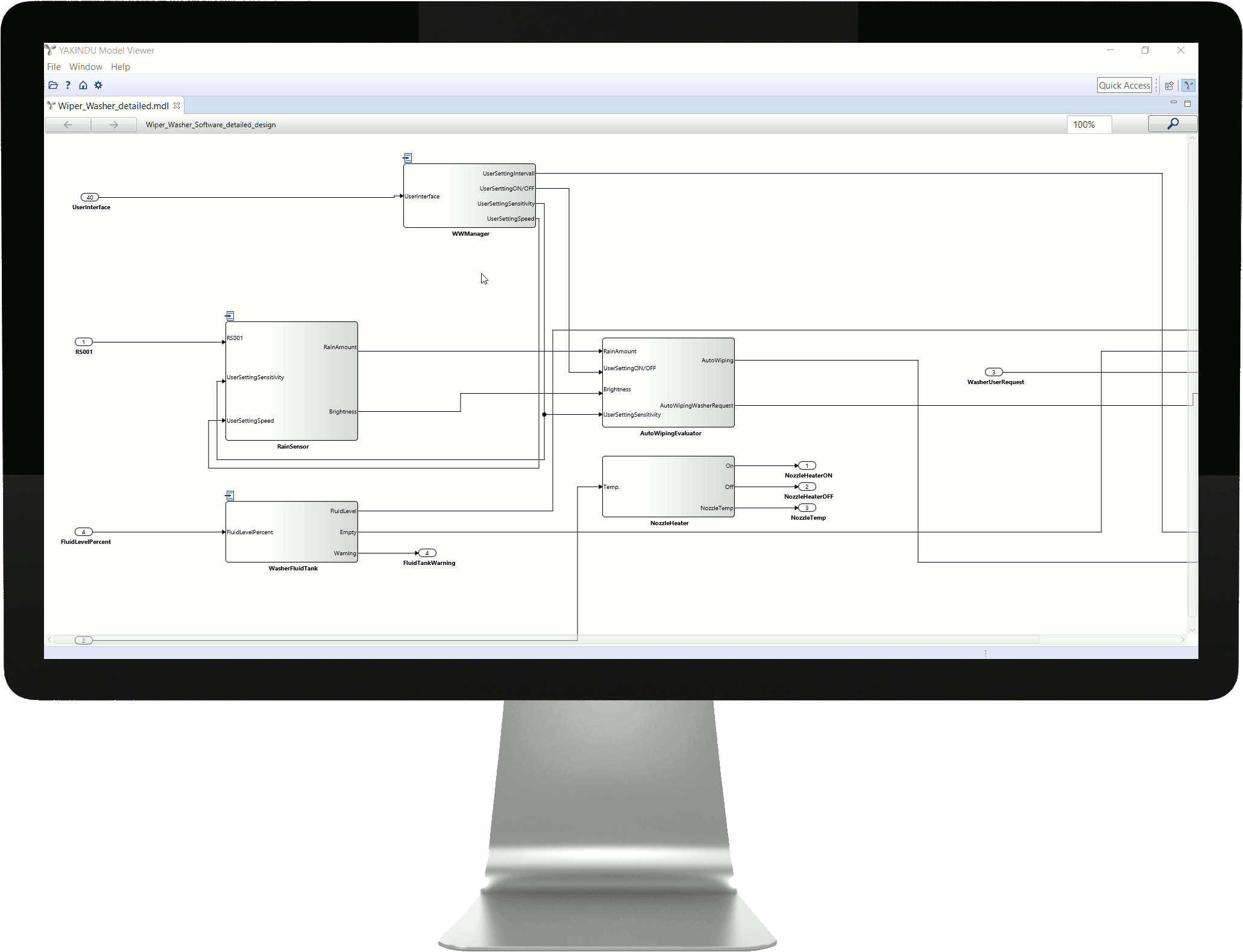

Create links and navigate between model elements and documents of different formats such as PDF, Microsoft Word and others to understand your models quickly. With DocConnect you can bundle your models and the augmented documentation as Model Manuals and share them with your colleagues so that calibrators, testers and other roles can benefit from them.

MORE ABOUT DOCCONNECT

Protect your models and your documentation

You can provide your model & documentation bundles to partners / third parties and you can be sure that they will be able to view, navigate, and search your models but are not able to copy your valuable intellectual property (IP). All Simulink models in the bundle are safeguarded using encryption. Once you shared them they cannot be edited afterwards.

MORE ABOUT IP-PROTECTION

Trace model elements to requirements and any other artifact

Traceability is a need for safety-critical systems. Link model elements such as blocks, signals, properties, states, and transitions to any relevant artifact like requirements, architectural elements, test specifications or else. Use the bidirectional trace links for navigation between tools and trace analysis.

READ ABOUT TRACEABILITY FOR SIMULINK
